Shared controls & how to read the sliders

Every operation in the Cutting Parameters Explorer uses the same set of controls. Learn them once here, then each operation page just lists which parameters that operation shows.

Conservative ↔ Aggressive

The big slider beneath the diagram is a single master dial. Slide it toward Conservative and every recommended value shifts toward safer cutting — lower forces, less heat, longer tool life, but a slower job. Slide it toward Aggressive and the recommendations push for speed and higher material removal, at the cost of more load on the tool, part and machine. It’s the quickest way to re-balance the whole job in one move; the individual sliders then fine-tune from there.

Reading a parameter slider

Each parameter is a horizontal track with markers on it. The legend at the top of the panel names them:

Range handle — the ends of the band you’re allowing the value to sit within.



Current value — where the value sits right now.



Recommended value — the explorer’s suggested setting.



Value at limit — shown when a value is pinned against a tool or machine limit.

Drag a handle	Narrow or widen the range the value is allowed to take.
Type a value	Click the value to enter an exact number instead of dragging. (Click the lock icon to type a value).
Lock	Pin a value so the explorer can’t move it when you change something else. Click the lock icon button to type a value.
Reset	Return a parameter to the recommended value.



Adjustable rows vs. read-outs

Adjustable parameters are ones you can directly constrain with the slider. Read-out parameters (for example material removal rate, feed per tooth or tool deflection on some operations) are calculated results — they react as you change the adjustable ones, so you can see the consequences of a change before committing to it.

Adjustable row

(Example: Spindle speed)

Read out only

(Example: Material removal rate)

Units

Lengths follow your unit preference — the label in the corner of the screen (e.g. inches) tells you which is active. Switching your preference between millimetres and inches re-labels and converts every value automatically. Speeds (rpm), angles (degrees) and other values are shown in their standard units regardless.

Cutting and Ramping tabs

Some operations need to ease the tool into the material with a ramping or helical lead-in move. For those, the explorer splits the controls into a Cutting tab (the main pass) and a Ramping tab (the entry move), each with its own parameters.

The engagement diagram

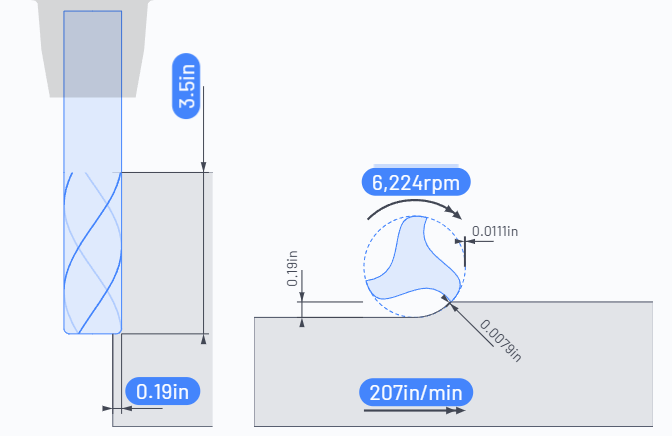

The illustration on the left shows the tool and the cut it’s making, annotated with the key dimensions (depth of cut, width of cut, speeds and feeds). It updates as you adjust the parameters, giving you a visual sense of what the numbers mean.

Saving

Save cutting parameters stores your choices for the operation; Cancel dismisses the explorer.
