Overview
With the release of CAM Assist 2.2.0, the cycle time estimation experience has been streamlined and fully integrated into the core CAM Assist workflow.
Rather than existing as a separate tool, cycle time estimation is now accessed directly within CAM Assist, providing a more consistent and reliable experience.
What Has Changed
This update applies to both Mastercam and Fusion integrations.
Cycle time estimation is no longer accessed via a separate top-level feature (CTE). Instead, it is now part of the standard CAM Assist flow.
What’s Improved
- A simpler workflow with no need to switch between tools
- A single source of truth for cycle time estimates within CAM Assist
- Removal of unused or unreliable workflows (such as bulk upload)
- A more consistent experience across CAM environments
Cycle time estimation functionality itself remains available, but is now accessed where users already work.
Removed / Simplified Elements
Removed Functionality
The following legacy elements have been removed or simplified as part of this improvement:
- The Cycle Time Estimator (CTE) window has been removed
- The CTE option in the CAM Assist dropdown is no longer visible
- The bulk file upload estimation workflow is no longer supported
- The ability to retrieve cycle times via Mastercam integration has been removed
- The popup displaying cycle time during export to Mastercam has been removed
- All associated Mastercam CTE code has been removed
Current Experience in CAM Assist 2.0
Cycle time estimation is now fully embedded within the CAM Assist workflow.
Users should:
- Run CAM Assist as normal
- Navigate to the Analyze phase
- View cycle time estimates directly within the interface
There is no longer a separate tool, window, or workflow for cycle time estimation.
Estimation Tabs
The estimation experience now includes only:
- Cycle Time Estimates tab
- Export tab

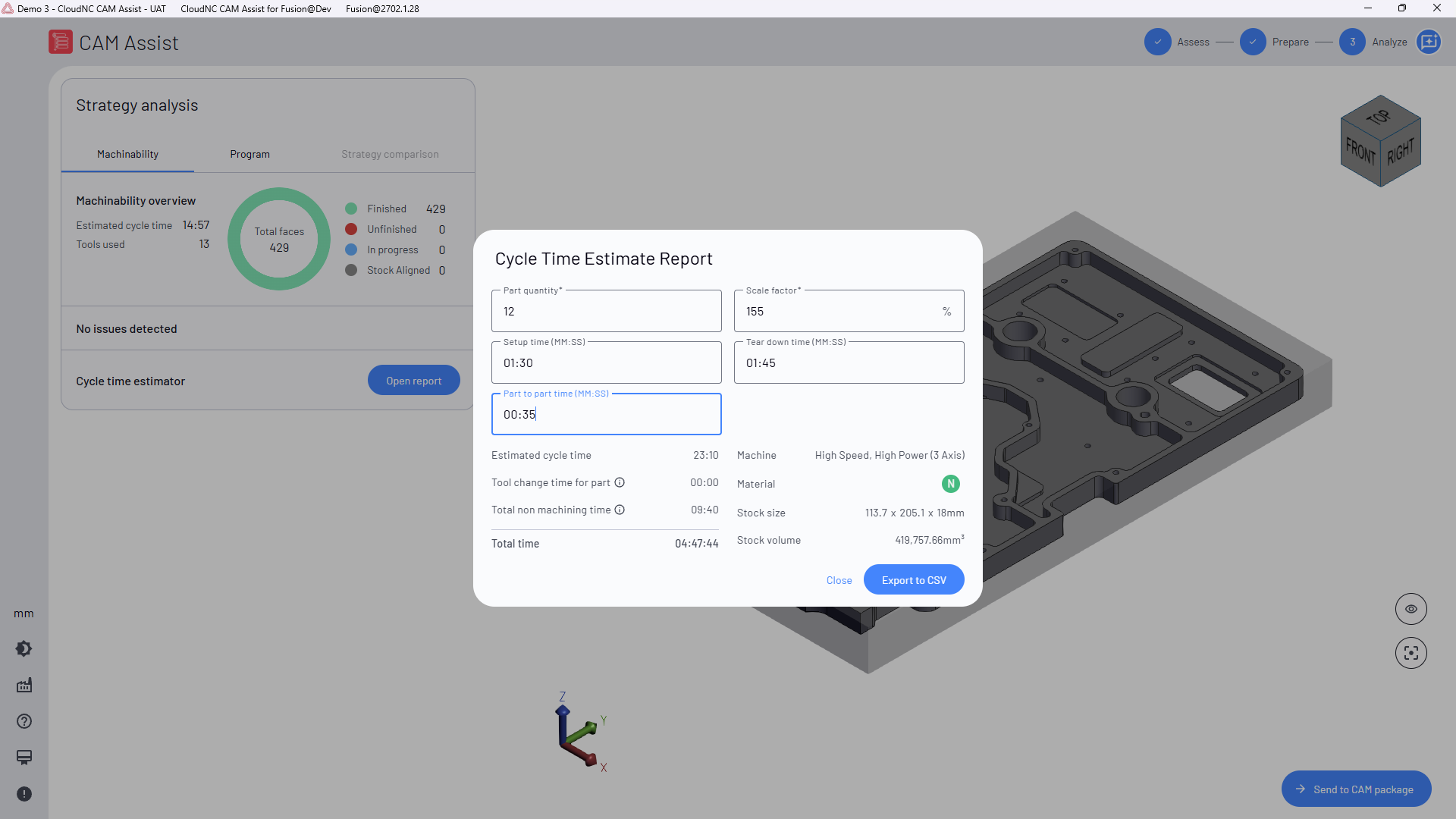

Example UI
Cycle time estimation is now streamlined and integrated directly into the CAM Assist workflow.

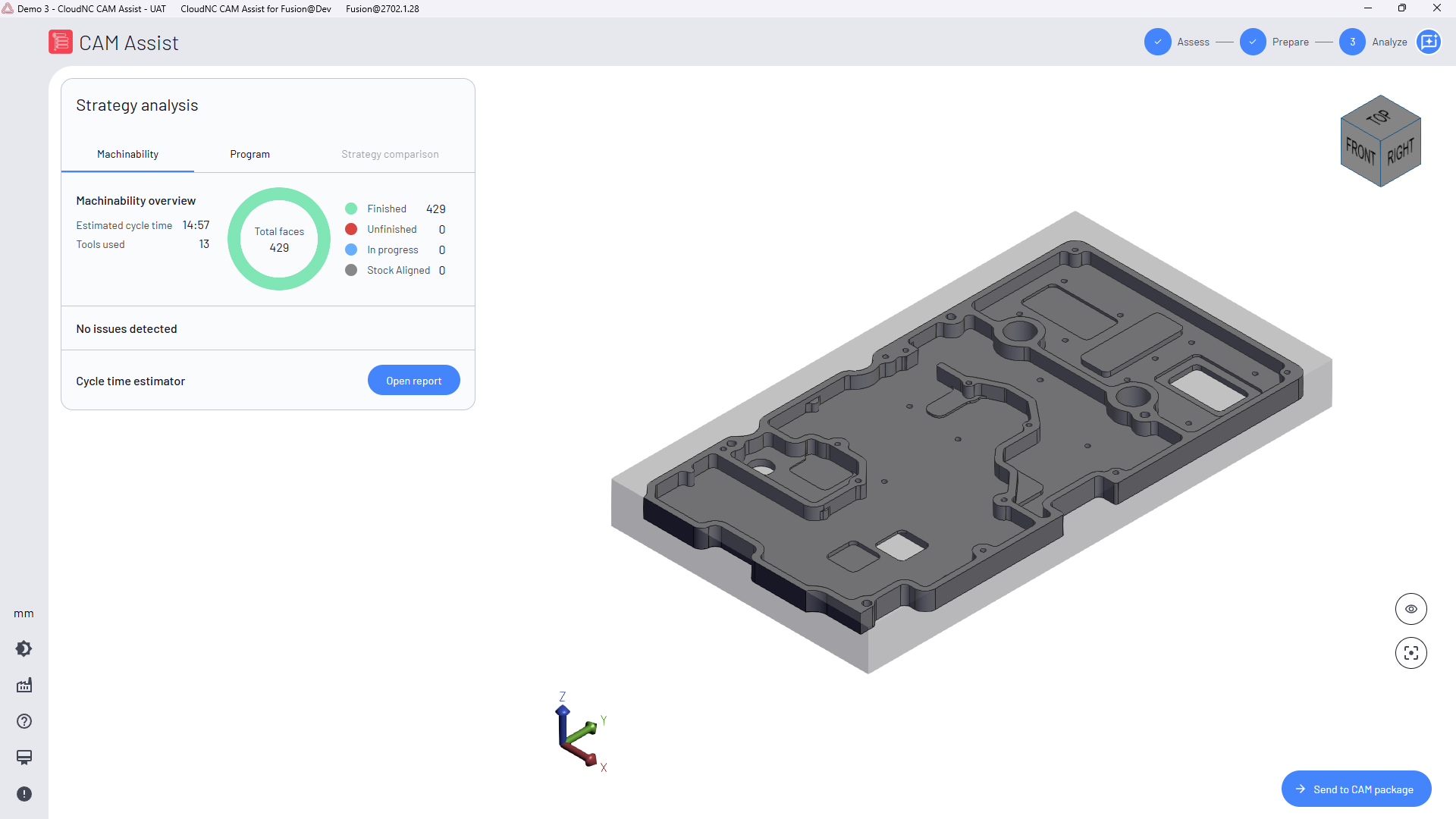

Cycle Time Access
Users can view estimated machining times during the Analyze phase.
Estimation Tabs
The estimation experience now includes only:
- Cycle Time Estimates tab
- Export tab

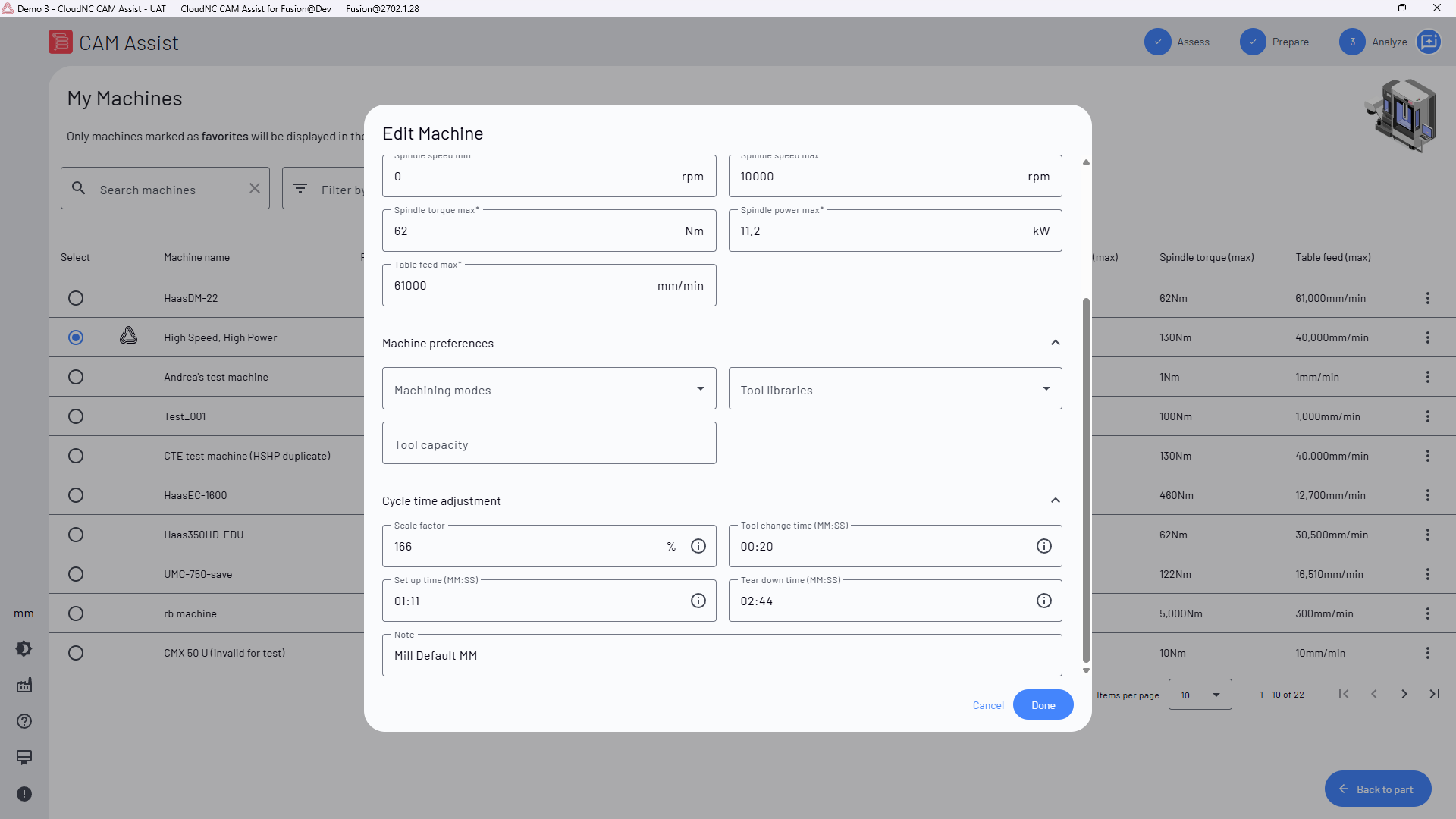

Machine Cycle Time Adjustments
- Users can now edit their machines with cycle time information, for more accurate results
Export Behaviour
Files are saved to local Downloads folder on Export
